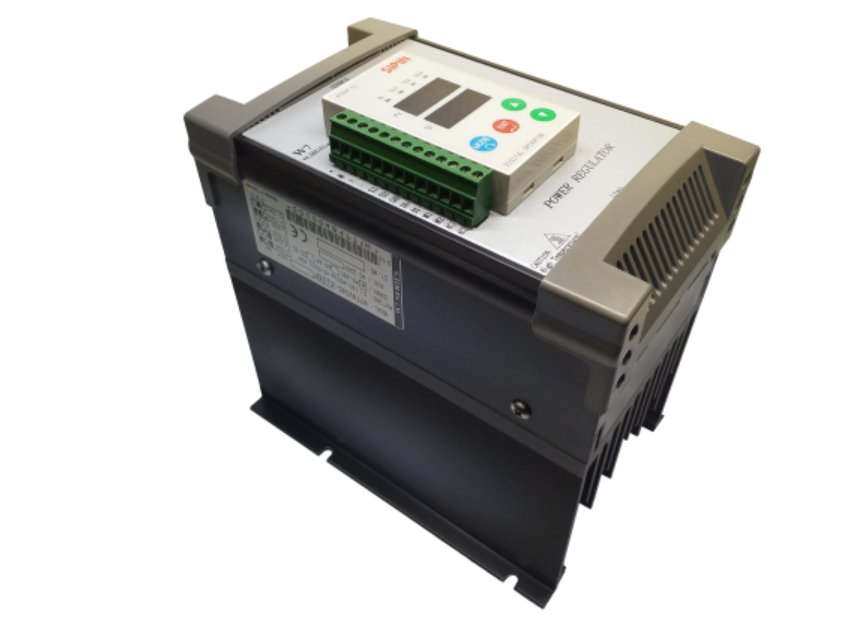

SIPIN W7 Series – Digital Thyristor Power Regulator (SCR ดิจิทัลตัวท็อป)
ต้องการ SCR ที่อ่านค่า V / A / kW ได้ในตัว สั่งงานและมอนิเตอร์ผ่าน Modbus และป้องกันความผิดปกติครบทุกแบบ? W7 Series คือ SCR Power Regulator รุ่นดิจิทัลตัวท็อปของ SIPIN — มี Digital Operation Box แสดงค่าจริงแบบ RMS (แรงดัน / กระแส / กำลัง) แทนมิเตอร์ภายนอก, สื่อสาร RS-485 Modbus RTU ต่อได้ถึง 250 ตัว, ควบคุมได้ถึง 9 โหมด พร้อมระบบตรวจจับความผิดปกติครบชุด — จบงานคุมความร้อนทุกแบบในเครื่องเดียว และผ่านมาตรฐาน CE
จุดเด่นระดับดิจิทัล

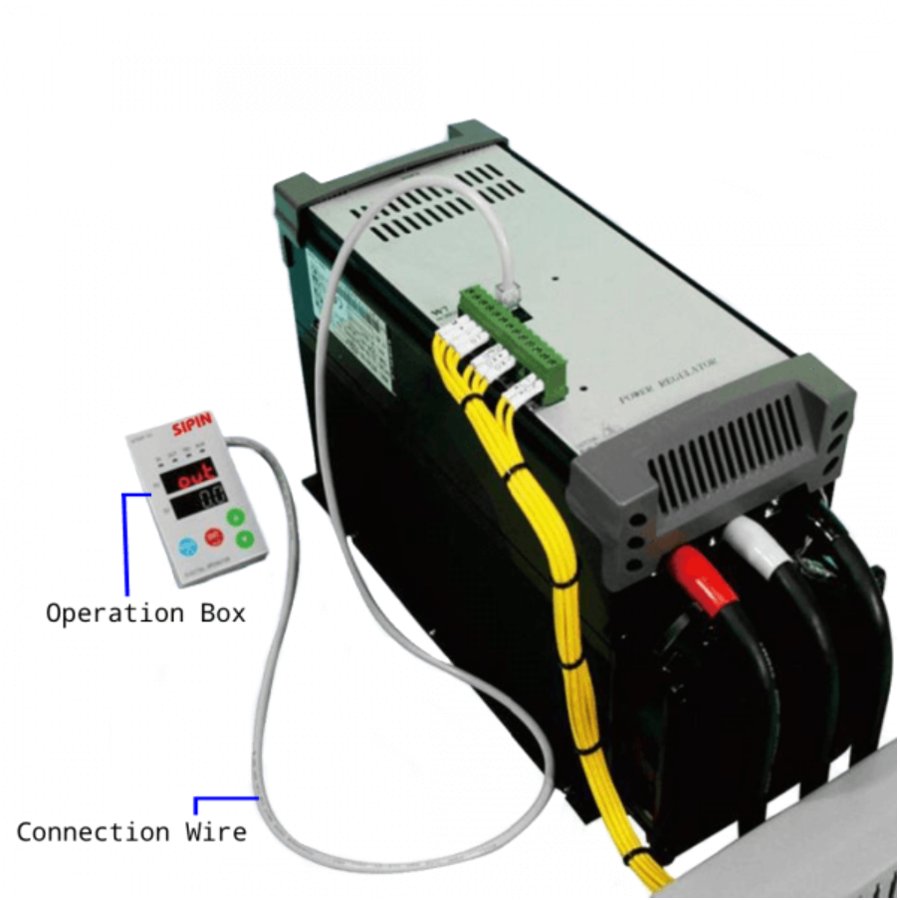

- Digital Operation Box — จอแสดงค่าจริง: input%, output%, แรงดัน, กระแส, กำลัง, อุณหภูมิฟิน, ความถี่, เวลาทำงาน ฯลฯ ใช้แทน Volt / Amp / Watt meter ภายนอก (ต่อสายยาวได้ถึง 10 ม.)
- RS-485 Modbus RTU — ต่อพ่วงได้ถึง 250 ตัว มอนิเตอร์และสั่งงานจาก PLC / SCADA และกระจายโหลดหลายตัวได้
- 9 โหมดควบคุม — Phase Angle Proportion, Zero Cycle / Zero Time Sampling, Phase Start-up, Constant Phase Voltage, Phase Current Limit, Constant Phase Power ครบทุกงานความร้อน
- Feedback แบบ RMS — คุมแรงดัน / กระแส / กำลังให้คงที่ (Constant V / I / Power) เหมาะกับฮีตเตอร์ที่ค่าความต้านทานเปลี่ยนตามอุณหภูมิ
- ตรวจจับความผิดปกติครบชุด — ฟิวส์ขาด, กระแสเกิน, อุณหภูมิเกิน, เซนเซอร์ผิดปกติ, กระแสต่ำ / โหลดหาย, สายโหลดขาด, เฟสไม่สมดุล, voltage feedback ผิดปกติ, EEPROM ผิดปกติ พร้อมบันทึกย้อนหลัง 4 ชุด
- ยืดหยุ่นอินพุต / เอาต์พุต — รับ 4-20 / 0-20 mA, 0-5 / 1-5 / 2-10 / 0-10 VDC, isolated contact, COM command; มี 2 Analog Input ตั้งฟังก์ชันได้; Add-on Card เลือก RS-485 / Analog out / Electronic contact
- ดีไซน์ตระกูล W ที่ไว้ใจได้ — ฝาเปิดลงล่างเปลี่ยนฟิวส์ง่าย, ฟิวส์ความเร็วสูงในตัว, วงจร Trigger แยกจากบอร์ดหลัก, ตรวจความถี่ 45–65 Hz อัตโนมัติ, กันไฟตก 0.5 Hz, Multi-function Dry Contact
ข้อมูลทางเทคนิค W7
| ขนาดกระแส | 30 – 720 A (สอบถามสต๊อก) |

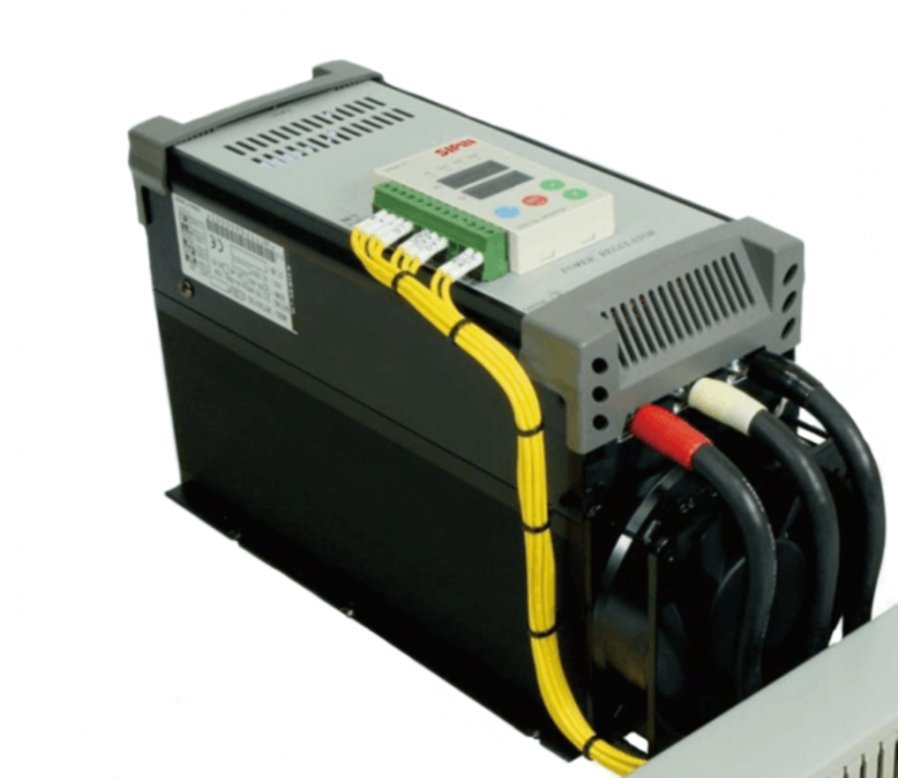

| เฟส | 1 เฟส • 3 เฟส (3P3W, 3P4W) |
| แรงดันเมน | 40–120 / 180–480 / 460–690 VAC • 45–65 Hz Auto |
| โหมดควบคุม | 9 โหมด — Phase / Zero Sampling / Constant Voltage / Constant Current / Constant Power |
| Feedback | Voltage / Current / Power (Active RMS) |
| Input | 4-20 / 0-20 mA • 0-5 / 1-5 / 2-10 / 0-10 VDC • Contact • COM (Modbus) |
| สื่อสาร | RS-485 Modbus RTU (ต่อได้ ≤ 250 ตัว) |
| Operation Box | มี / ไม่มี (KP-WTDOP-01 • สาย 2 / 5 / 10 ม.) |
| Add-on Card | RS-485 COM / Analog out (0-20, 4-20 mA) / Electronic contact |
| Aux Power | 110 VAC / 220 VAC |
| ความละเอียด | Input 10-bit • Output 0.1% (Single Chip) |
| ป้องกัน | ฟิวส์ขาด / OC / OT / เซนเซอร์ / โหลดหาย / สายขาด / เฟสไม่สมดุล ฯลฯ + log 4 ชุด |
| สภาพแวดล้อม | -10 ~ 45°C • RH < 90% |
| มาตรฐาน | CE |
เลือก W6 หรือ W7 ดี?
| หัวข้อ | W6 | W7 (ดิจิทัลตัวท็อป) |
| จอ / มอนิเตอร์ | LED บอกสถานะ | Digital Operation Box อ่านค่า V / A / kW จริง |
| สื่อสาร | – | RS-485 Modbus RTU (≤ 250 ตัว) |
| Feedback | – | Constant V / I / Power (RMS) |
| โหมดควบคุม | หลายโหมด | 9 โหมดเต็ม |
| ระบบป้องกัน | ขาดเฟส / OT / ฟิวส์ | ครบชุด + บันทึก fault 4 ชุด |
| เหมาะกับ | งานคุมทั่วไป คุ้มค่า | งานที่ต้องมอนิเตอร์ / สั่งงานผ่านระบบ + คุมแม่นสูง |
ทั้งสองรุ่นกระแสถึง 720A และแรงดัน 40–690 VAC เท่ากัน — ต่างกันที่ W7 เป็นดิจิทัลเต็มตัว (จอ + Modbus + feedback)
SIPIN W7 Series – Key Specifications (English)
SIPIN W7 Series is a fully digital SCR / Thyristor Power Regulator with a Digital Operation Box (true-RMS V / A / kW readout), RS-485 Modbus RTU communication and closed-loop feedback control, for precision power control of electric heaters and furnaces. Distributed in Thailand by KMI.Team Engineering Co., Ltd.
| Rated Current | 30 A – 720 A (model dependent) |
| Phase | Single-phase • Three-phase (3P3W, 3P4W) |
| Main Power Voltage | 40–120 VAC / 180–480 VAC / 460–690 VAC • 45–65 Hz automatic detection |
| Control Modes | 9 modes — Phase Angle Proportion • Zero Cycle / Zero Time Sampling • Phase Start-up • Constant Phase Voltage • Phase Current Limit • Constant Phase Power |
| Feedback | Voltage / Current / Power (true RMS) — constant V / I / kW control |
| Control Input | 4–20 mA / 0–20 mA • 0–5 / 1–5 / 2–10 / 0–10 VDC • Isolated contact • COM command (Modbus); 2 configurable analog inputs |
| Communication | RS-485 Modbus RTU — up to 250 units per network; monitoring and command from PLC / SCADA |
| Digital Operation Box | Optional (KP-WTDOP-01) — displays input %, output %, voltage, current, power, heatsink temperature, frequency and run time; cable 2 / 5 / 10 m |
| Add-on Card | RS-485 COM / Analog output (0–20, 4–20 mA) / Electronic contact |
| Auxiliary Power | 110 VAC / 220 VAC |
| Resolution | Input 10-bit • Output 0.1% (single-chip digital control) |
| Protection | Fuse blown, over-current, over-temperature, sensor fault, under-current / load open, missing load wire, phase imbalance, voltage-feedback fault, EEPROM fault — with 4-event fault log; built-in high-speed fuse; 0.5 Hz voltage-dip protection |
| Operating Environment | -10 ~ 45 °C • RH < 90 % |
| Certification | CE |
คำถามที่พบบ่อย (FAQ) – SIPIN W7
SIPIN W7 ต่างจาก W6 อย่างไร?
W7 เป็น SCR ดิจิทัลเต็มตัว มี Digital Operation Box อ่านค่าแรงดัน / กระแส / กำลังจริงแบบ RMS, สื่อสาร RS-485 Modbus RTU ต่อพ่วงได้ถึง 250 ตัว, feedback คุม Constant Voltage / Current / Power, 9 โหมดควบคุม และบันทึก fault 4 ชุด ส่วน W6 เป็นจอ LED บอกสถานะ ไม่มี Modbus และ feedback ช่วงแรงดัน 40–690 VAC เท่ากัน
SIPIN W7 ต่อ Modbus ได้กี่ตัว?
RS-485 Modbus RTU ต่อพ่วงได้สูงสุด 250 ตัวในเครือข่ายเดียว มอนิเตอร์และสั่งงานจาก PLC / SCADA ได้ทั้งหมด
SIPIN W7 มีโหมดควบคุมอะไรบ้าง?
9 โหมด ได้แก่ Phase Angle Proportion, Zero Cycle / Zero Time Sampling, Phase Start-up, Constant Phase Voltage, Phase Current Limit และ Constant Phase Power เลือกได้ตามชนิดโหลดและความต้องการคุมกำลัง
Digital Operation Box ของ W7 คืออะไร จำเป็นต้องมีไหม?
เป็น Option รุ่น KP-WTDOP-01 จอแสดงค่าจริง input %, output %, แรงดัน, กระแส, กำลัง, อุณหภูมิฟิน, ความถี่ และเวลาทำงาน ใช้แทน Volt / Amp / Watt meter ภายนอก ต่อสายได้ 2 / 5 / 10 เมตร ถ้ามอนิเตอร์ผ่าน Modbus อยู่แล้วและไม่ต้องดูค่าหน้าเครื่อง อาจไม่จำเป็นต้องใส่
SIPIN W7 เหมาะกับงานแบบไหน?
งานที่ต้องมอนิเตอร์หรือสั่งงาน SCR ผ่าน PLC / SCADA, งานที่ต้องคุมกำลังคงที่ (Constant Power) สำหรับฮีตเตอร์ที่ค่าความต้านทานเปลี่ยนตามอุณหภูมิ, ไลน์หลายโซนที่ต้องต่อพ่วงหลายตัว และงานที่ต้องการระบบป้องกันพร้อมบันทึก fault
Where to buy SIPIN W7 Digital SCR Power Regulator in Thailand?
KMI.Team Engineering Co., Ltd. is a SIPIN distributor in Thailand offering the W7 Series from 30 A to 720 A with free sizing and option consultation (Operation Box / Add-on Card). Tel 02-814-1842-3.
เหมาะกับงาน
งานคุมฮีตเตอร์ที่ต้องมอนิเตอร์ค่า V / A / kW ผ่าน PLC / SCADA • งานที่ต้องคุมกำลัง / แรงดัน / กระแสให้คงที่ • ไลน์หลายโซนที่ต้องต่อพ่วงหลายตัว • งานที่ต้องการระบบป้องกันและบันทึก fault ครบ
สนใจหรือปรึกษาเลือกรุ่นและ option (Operation Box / Add-on Card) โทร 02-814-1842-3 — แจ้งกำลังวัตต์ แรงดัน ชนิดโหลด และระบบที่จะต่อ วิศวกรของเราเลือกรุ่นและออปชันให้ฟรี
Specification (ดาวน์โหลด PDF)
ดาวน์โหลด W7 Series Digital Power Regulator — Catalog (PDF)
